Mercury Pneumatics Pvt Ltd

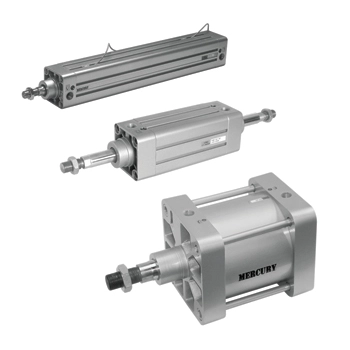

Series V

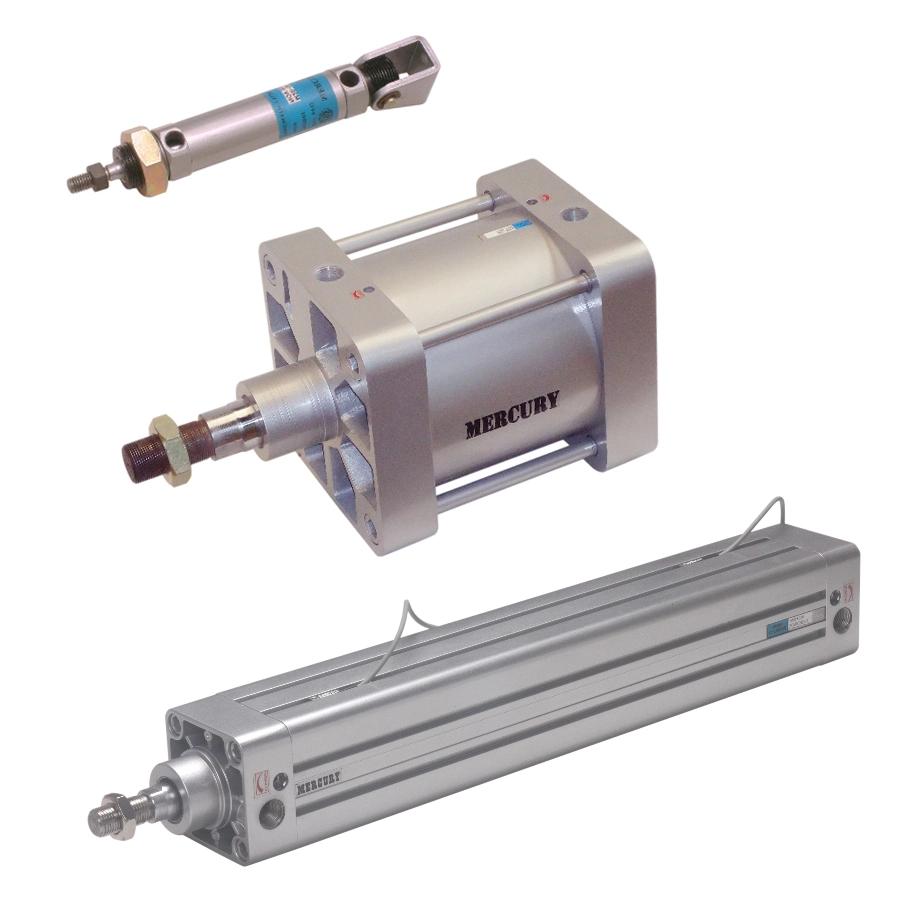

Mercury Series V Pneumatic cylinders come in 3 bore sizes i.e 125mm, 160mm and 200mm. These large bore cylinders conforms to all ISO dimensions and are available in magnetic or non magnetic Configuration.

Series V

Mini Valves (Series M22)

Series ND direct acting valves come with M22 coils. They are compact and available only in G1/8” BSP port sizes in 2WAY and 3WAY configurations. Gang manifold assemblies are available.

Mini Valves (Series M22)

Standard Valves (Series M32)
Series D direct acting valves come with M32 coils. They are robust and available in G1/8” BSP & G1/4” BSP port sizes in 2 WAY and 3WAY configurations. Gang manifold assemblies are available.
Standard Valves (Series M32)


MS Series
MS series spool type solenoid valves are compact and versatile valves. They are available in G1/8”, G1/4” and G1/2” BSP port sizes in 3WAY and 4WAY configurations. Gang manifold assemblies are also available.
MS Series

NS Series
NS series spool type solenoid valves are Robust and versatile valves. They are available in G1/8”, G1/4”, G1/2”and G3/4” BSP port sizes in 3WAY and 4WAY configurations. Gang manifold assemblies are also available.
NS Series

Series P

P series Poppet type solenoid valves are Robust valves. They are available in G1/4”, G1/2” and G3/4” BSP port sizes only in 2WAY configuration.
Series P

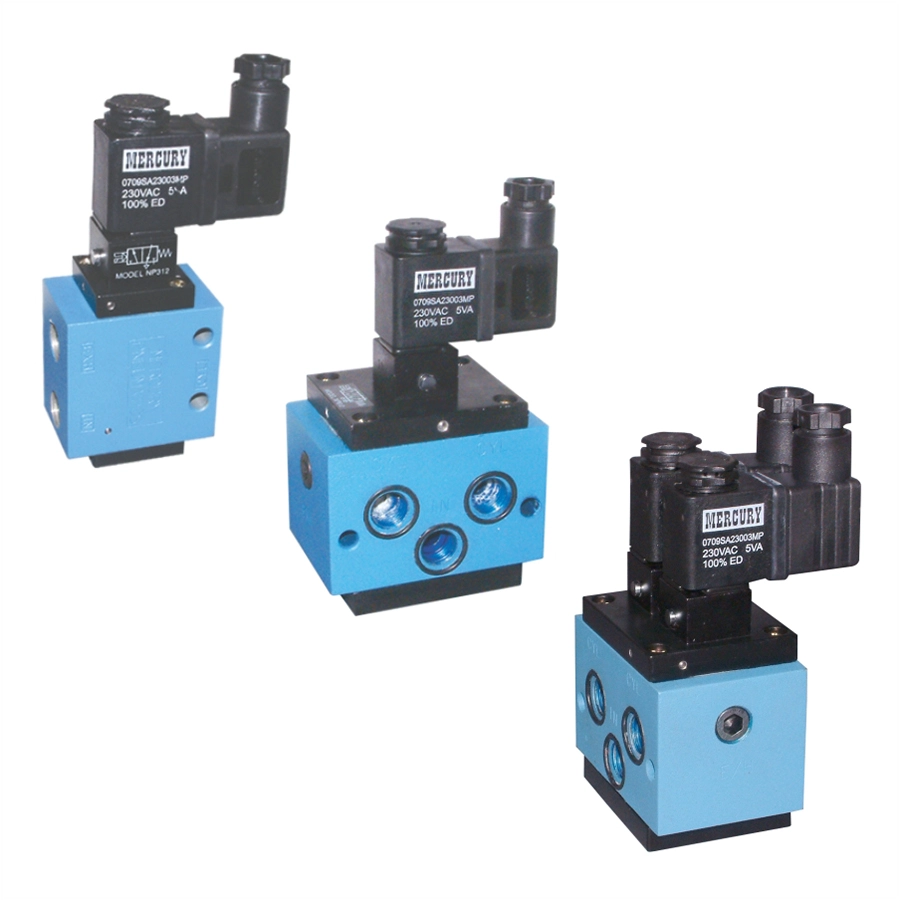

Series NP

NP series poppet type solenoid valves are compact Robust. They are available in G1/4”, G1/2” and G3/4” BSP port sizes in 3WAY and 4WAY configurations.

Series NP

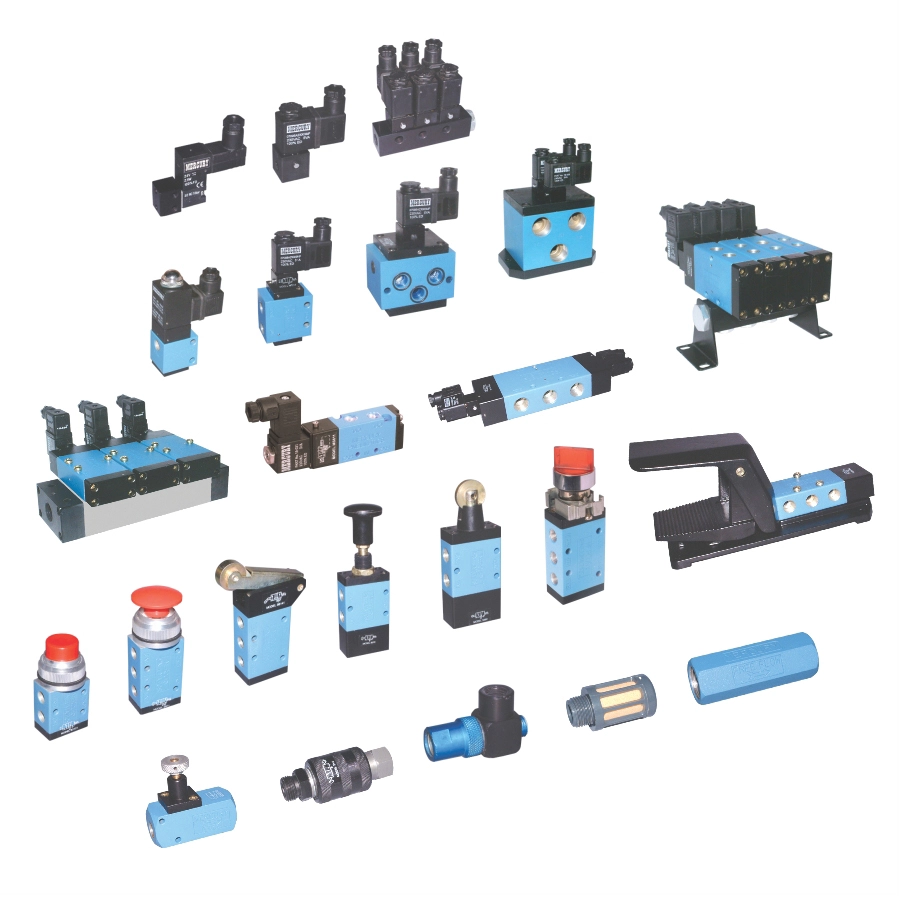

Pneumatic Actuated Valves

“Mercury” Spool type Pneumatic Actuated valves are available in 3 WAY and 4 WAY configurations in various port sizes. These valves are pneumatically actuated with a pilot signal and are used in areas where electrical signals are not available

Pneumatic Actuated Valves

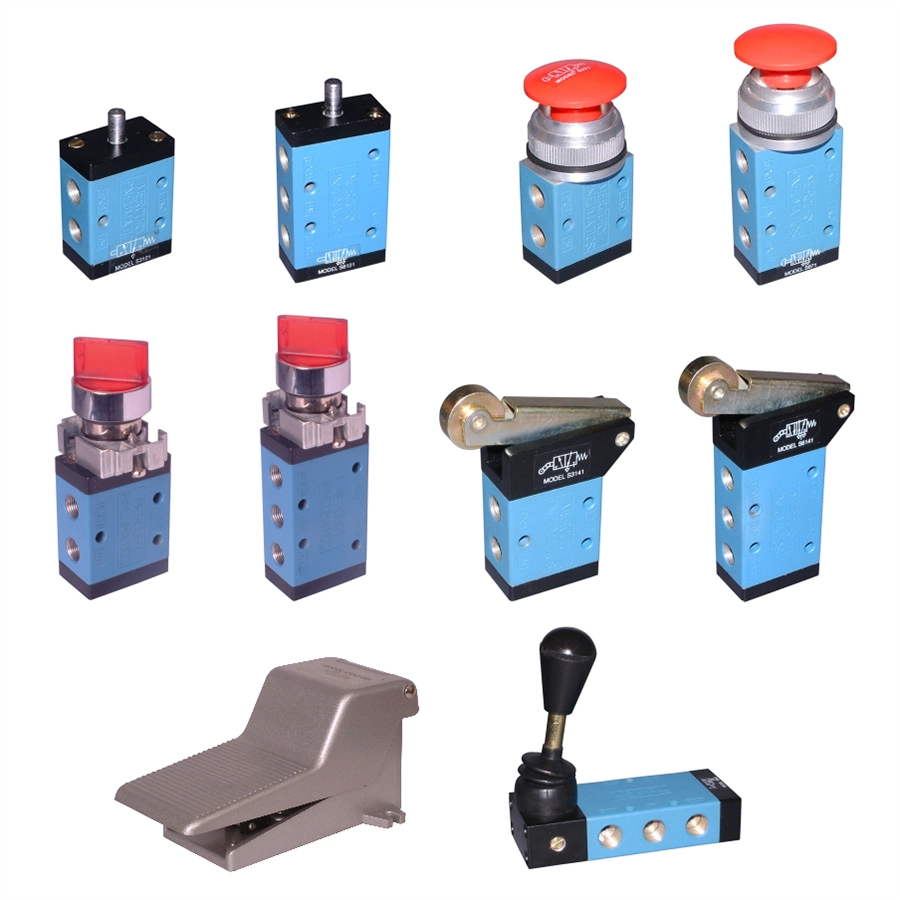

Series S

Series S valves consist of plunger , palm button, push button, selector knob, roller lever , foot pedal , direct roller and hand lever operated type spool valves. They are available in G1/8”, G¼” and G1/” sizes in 3 WAY and 4 WAY configurations.

Series S

Series R

These are 4 WAY, 3 position Manually actuated disc rotary valves. Mercury’s robust design has stood the test of time and hence is preferred by many OEM clients.They are available only in G1/4” BSP port sizes and come in hand lever or selector knob type.

Series R

Hand Slide valve

These are inline valves and are used to isolate machines/ systems from the main compressed air line.

Hand Slide valve

Quick Exhaust & Shuttle Valves

These valves are versatile and required in automation systems and pneumatic circuits.

Quick Exhaust & Shuttle Valves

Air Pressure Regulators & Silencers

Air pressure regulators are required to control the air pressure being fed into the system and silencers are used to reduce the noise from the exhaust air form the Pneumatic valves.

Air Pressure Regulators & Silencers

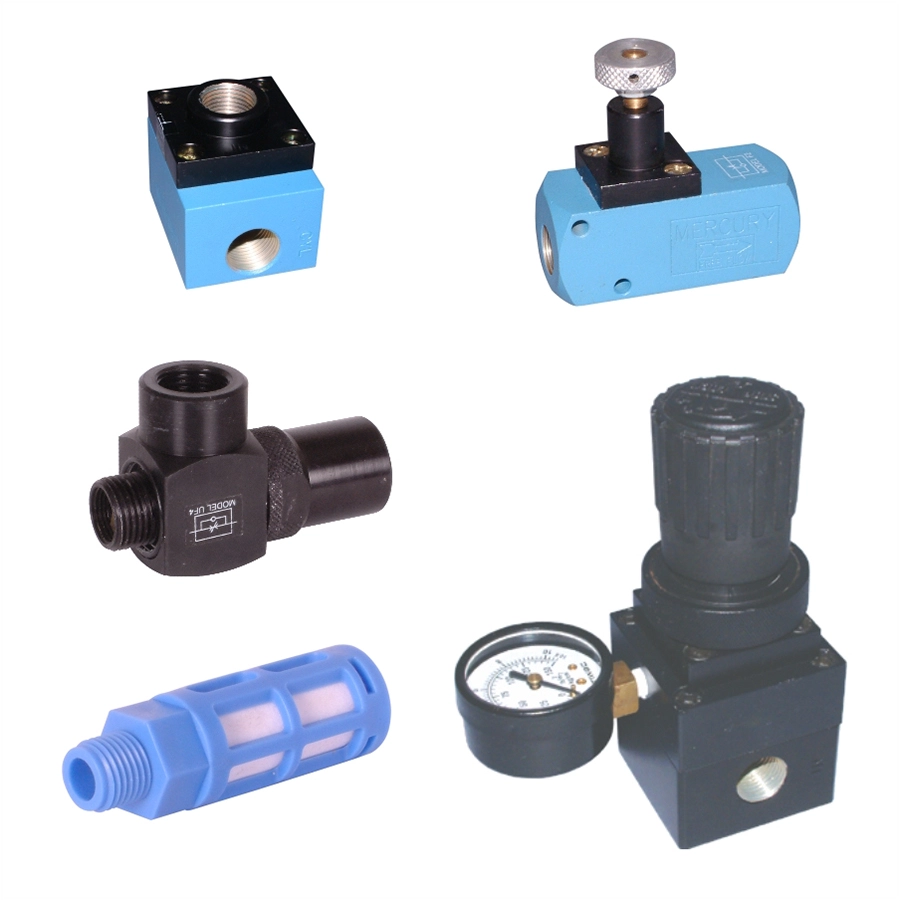

Flow Control & Non Return Valves

Flow control valves are essential to control the speed and timings of the pneumatic systems. Non return valves perform as their name suggests i.e does not allow the compresses air to return through it in the backward direction.

Flow Control & Non Return Valves

Solenoid Coils, Connector And Time Operated Coils

“Mercury” offers a selection of solenoid coils and connectors ranging from 6VDC to 230VAC with Black or illuminated connectors. They come in various sizes i.e M17, M22 and M32 which can be used in conjunction with Mercury solenoid valves. The timer operated solenoid valves come with OFF delay, ON delay and CYCLIC functionalities

Solenoid Coils, Connector And Time Operated Coils

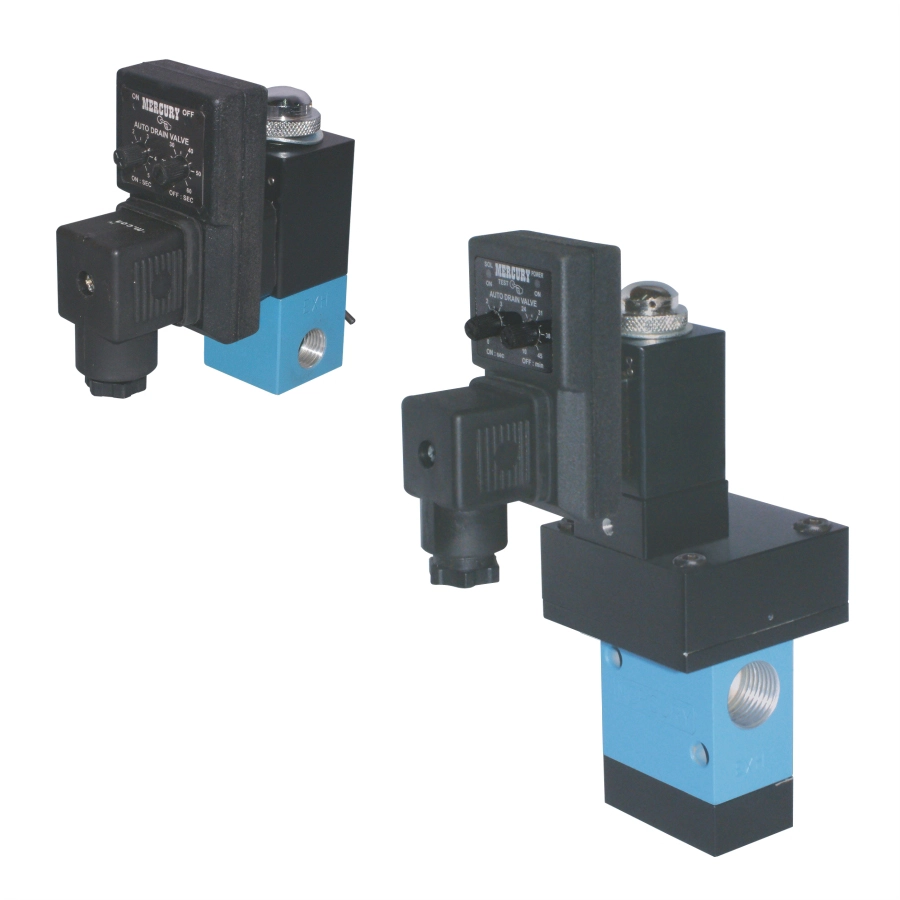

Automatic Drain Solenoid Valves

Automatic Drain valves are used for removal of condensed water from compressed air systems. ”Mercury” range of automatic drain valves are Compact, Robust and cone in multiple sizes depending on the size of the receiver or tanks.

Automatic Drain Solenoid Valves

Special Valve For Hydro Pneumatic Pumps And Air Boosters

The various valves used on “Mercury” Hydro Pneumatic pumps and Air Boosters are listed below. Their application and working can be found in the Hydro Pneumatic pumps / Air Booster section of the website.

Special Valve For Hydro Pneumatic Pumps And Air Boosters

Special Valves For Hydro Pneumatic Presses

The various valves used on “Mercury” Hydro Pneumatic presses and the Valve regulator blocks are listed below. Their application and working can be found in the Hydro Pneumatic press section of the website.

Special Valves For Hydro Pneumatic Presses

Dual Safety Solenoid Valve For Mechanical Power Press

This valve is used as a FAIL SAFE device for operating pneumatic clutches/ brakes or power presses and similar other machines needing such protection. They can generate an electrical signal if the valve fails thus giving feedback to the controls to stop the machine thus ensuring an accident will never take place.

Dual Safety Solenoid Valve For Mechanical Power Press

Special Valves For OEM Applications

"MERCURY" has the technical expertise and R & D infrastructure to develop valves for specialized applications as per customer's specifications. These can be manufactured in small batch quantities of minimum 100 nos.

Special Valves For OEM Applications

Series S - 1/4" Units

Below all the details of the various units available in 1/4" BSP part sizes. Kindly refer attached data sheet for all dimensional details and operating parameters.

Series S - 1/4" Units


Fittings, Tubings & Accessories

Mercury provides a wide variety of quick connect tube fittings for various applications and requirements Some of their salient features are :
    -    Special design seal on the tube O.D. ensures leak proof connection
    -    Special steel locking collet
    -    Leak proof swivel joint with 360° rotation
    -    Nickel plated metal body to ensure non corrosion
    -    Pre-coated PTFE sealant on threads

Fittings, Tubings & Accessories
Series N - Hydro Pneumatic Press

The latest ‘N’ series Hydro-Pneumatic Presses are available in the following configurations as standard options.  The 2 Colum, 4 Colum or C-Frame type can be selected depending on the job being done, component size, auto / manual loading etc. Moreover, Mercury also customizes the bed size of the machine to suit customer, die sizes or special requirements.

Hydro Pneumatic Press

Series N - Hydro Pneumatic Cylinder

‘N’ series Hydro-Pneumatic Cylinders are independent power units that can be purchased separately and further integrated in to larger systems. They are available in tonnages starting from 1 tonne and going all the way up to 45 tonnes. The standard travel lengths provided are 50 mm, 75 mm, 100 mm & 150 mm with power stroke lengths of 6 mm, 12 mm or 24 mm. Below are the list of models with details of their configurations.

Series N - Hydro Pneumatic Cylinder

Compact C Frame Presses

Compact C-Frame presses are specially designed for small components requiring limited spaces. This not only reduces the initial investment but also the space requirement of the machine thus making small manufacturing cell possible. These compact and low cost c-frame presses are ideally suited for small size jobs such as automotive cable crimping, hose pipe end fitting crimping, stamping etc.

Compact C Frame Presses

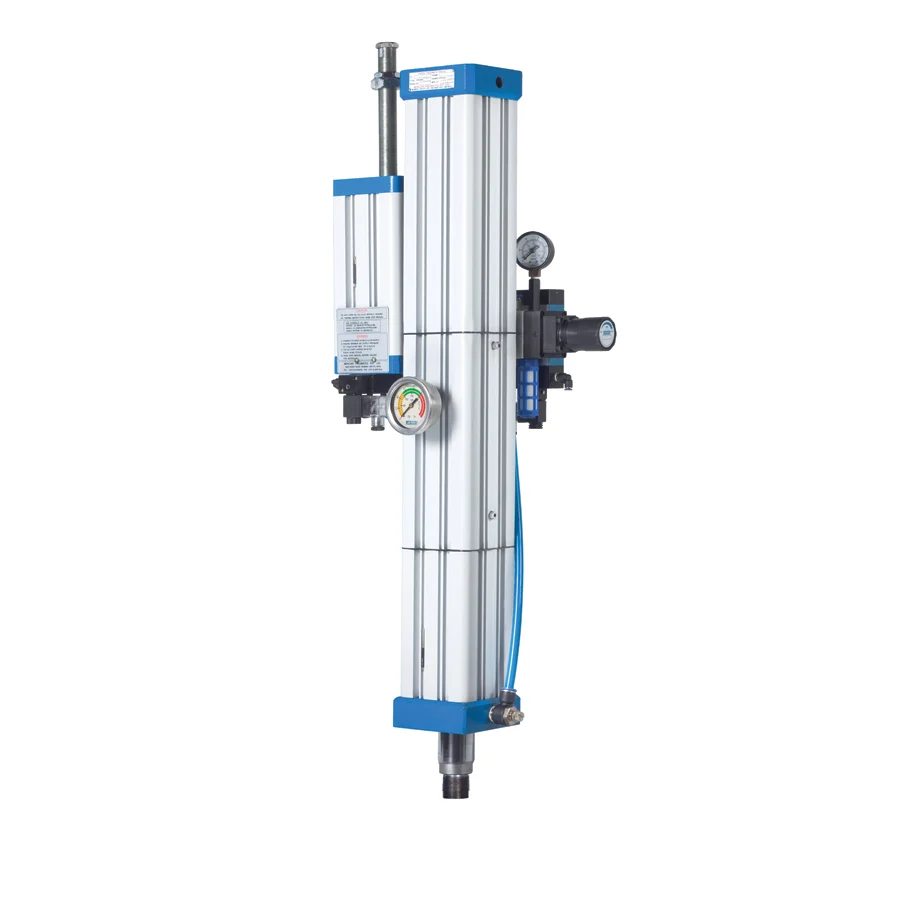

Series H Hydro Pneumatic Press Cylinders

These systems are used in applications where the job is automatically fed in to the die and only a short travel is required under load. Hence the approach ( low force pneumatic stroke) is eliminated and only a direct high force power stroke is generated.

Series H Hydro Pneumatic Press Cylinders

Series Z Hydro Pneumatic Systems

The series ‘Z’ Hydro-Pneumatic Systems have been developed for applications where two or more Cylinders have to be operated from a single Reservoir-Intensifier Power unit. They are also useful for applications requiring a large travel under load (large Power Stroke) and for applications where the length of our standard ‘N’ series Hydro-Pneumatic Press systems cannot be accommodated.

Series Z Hydro Pneumatic Systems

Series M Manually Operated Presses

Series ‘M’ manually operate presses were launched as a compact low cost systems eliminating the use of electronics. These systems are actuated manually with a hand lever valve and used in areas where only basic functionality is required and use of electronics is not preferred.

Series M Manually Operated Presses

Series S Shaft Straightening Presses

As the name suggests, these machines are used for straightening shafts. The versatile technology coupled with the compact dimensions make these the most suitable machines for shaft straightening.

Series S Shaft Straightening Presses

Hydro Pneumatic Systems For Pet Moulding Machines

Air pressure regulators are required to control the air pressure being fed into the system and silencers are used to reduce the noise from the exhaust air form the Pneumatic valves.

Hydro Pneumatic Systems For Pet Moulding Machines

Hydro Pneumatic Pumps

The Mercury Series ”N” Hydro-Pneumatic Pumps are an efficient, low cost alternatives to motorized and hand operated pumps.

Hydro Pneumatic Pumps

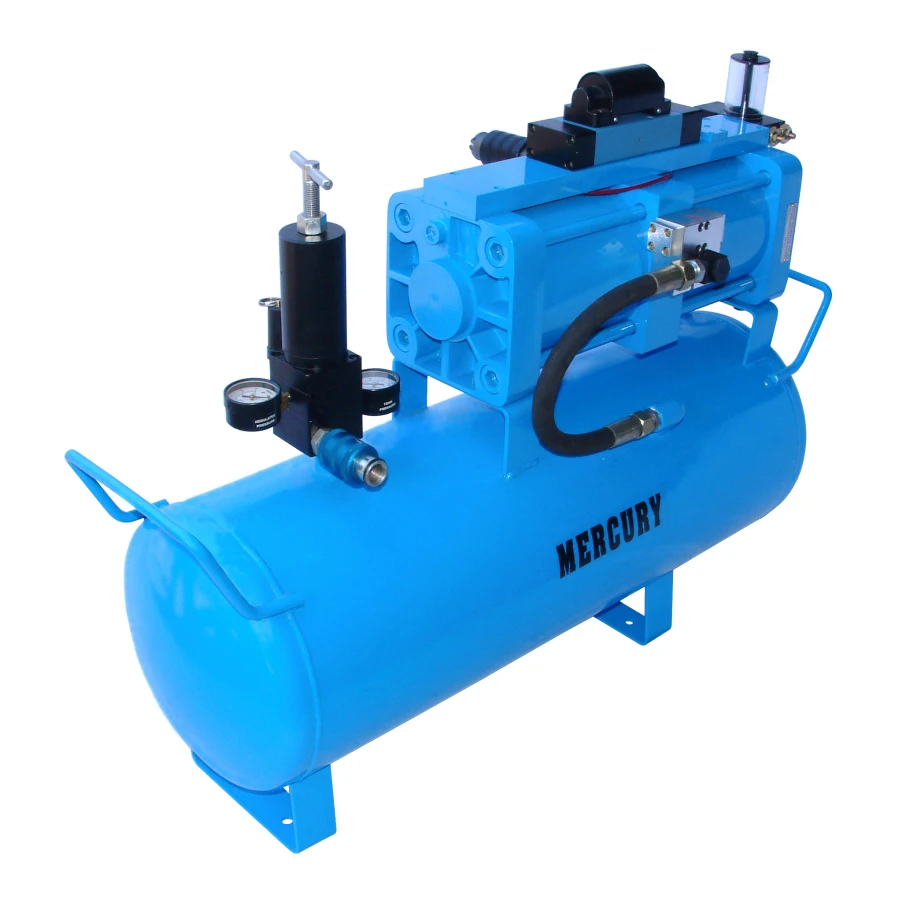

Air Boosters

It is not unusual that, during some applications the thrust generated by a pneumatic system is not sufficient for a specific purpose that it has been designed for. In order to get a higher output pressure, the inlet pressure needs to be increased which in some cases may require to be higher that the shop line pressure. It is in those situations that MERCURY Air Boosters are the ideal solution to generate the desired outcome.

Air Boosters

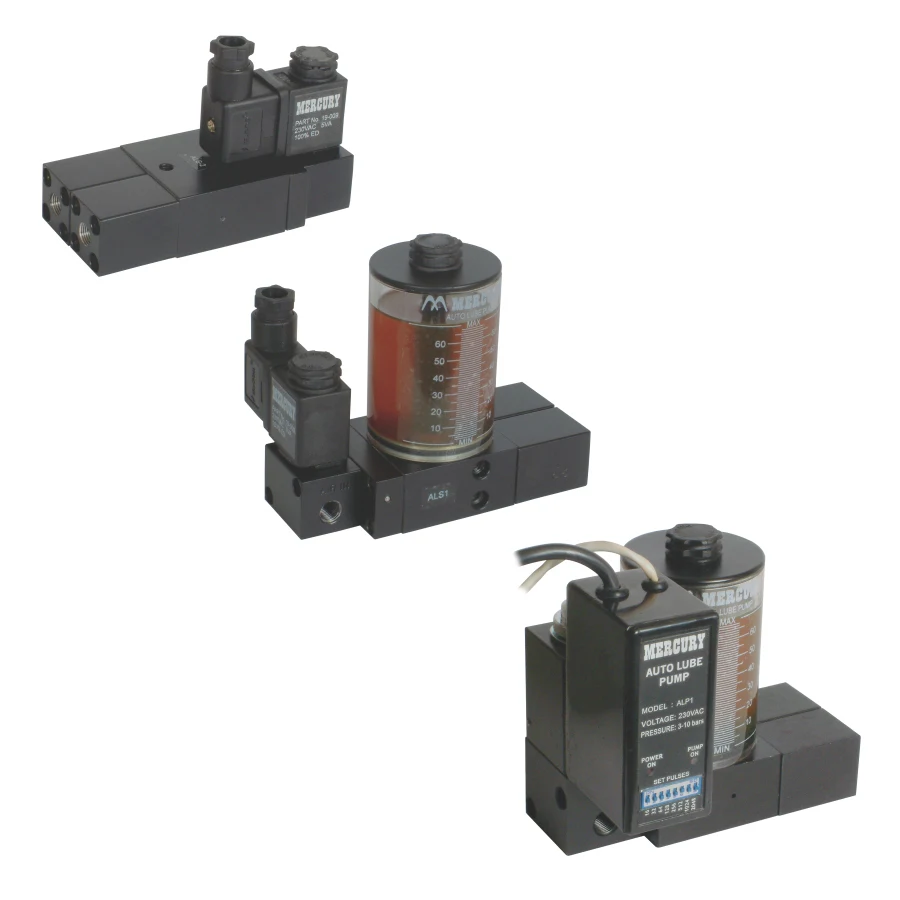

Autolube Pumps

These pumps are capable of discharging small quantities of oil under very high pressure. They are generally used for positive, programmed lubrication of compressed air equipment, machine slides, bearings etc.

Autolube Pumps

Pneumatic Grease Dispensing Pumps

Mercury Pneumatic Grease Pumps are an efficient, low cost alternative to motorized grease pumps and hand operated pumps. They are used for dispensing preset quantity of grease into various machine components such as bearings, shaft assemblies, gear assemblies etc.

Pneumatic Grease Dispensing Pumps

Direct Acting Solenoid Valves

“Mercury“ Direct acting valves are available in 2 series i.e D series and ND series. The same are available in 2WAY and 3WAY configurations in various port sizes. Gang manifold assemblies are also available. These valves are compact and are used for specific applications.

Direct Acting Solenoid Valves
