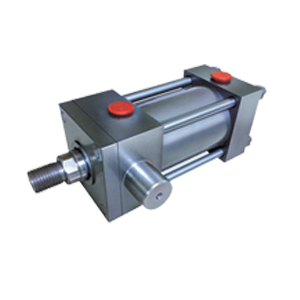

EN Series
- Standard construction, square head, tie rod design
- 10 standard mounting styles available
- Provision for smaller as well as bigger rod diameter for each bore size
- Wide range of mounting accessories
- Bore sizes : 32mm to 200mm
- Strokes available in any practical stroke length
- Maximum working pressure - 160 bar
- Piston rods - 18 mm to 130 mm
- Single and double rod designs
- Cushioning available from 63mm bore onwards only
- Cushions available at either end
- Temperature range : - 20 C to +80 C (standard) 20 C to +150 C (optional)
- Standard fluid : Mineral oil DIN 51524 (HL, HLP)
- Seal types to suit a wide variety of operating environments

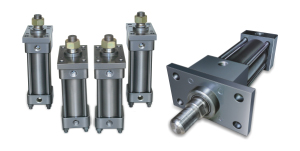

H50 Series
- 9 Standard mounting styles
- Maximum working pressure 50 bar
- Single rod designs
- Non-cushioned
- Bore sizes : 40mm to 150mm
- Piston rods : 16mm to 45mm
- Strokes : Available in any practical stroke length
- Temperature range : -20 C to +80 C (standard)
- Standard fluid : Mineral oil, DIN 51524 (HL, HLP)
